    Shuttleless 800rpm Flexible Rapier Weaving Loom 360cm Reed Width

    Ask Lasest Price
    Brand Name : GOODFORE
    Model Number : 808-ULTRAFAST
    Certification : ISO
    Price : USD1500~USD4000/set
    Payment Terms : T/T, Western Union, L/C, , D/A
    Supply Ability : 200/set per month
    Delivery Time : 5-15 working days
    • Product Details
    • Company Profile

    Shuttleless 800rpm Flexible Rapier Weaving Loom 360cm Reed Width

    Automatic Inspection Function High Speed Low Power Consumption Loom Rapier

    Rapier loom is the most widely used shuttleless loom at present. In addition to the characteristics of high-speed, high automation and high-efficiency production of shuttleless loom, its active weft insertion mode has strong variety adaptability and can adapt to the weft insertion of all kinds of yarns. In addition, rapier loom also has obvious advantages in multi-color weft weaving, and can produce color weaving products with up to 16 color weft yarns. With shuttleless loom replacing shuttle loom, rapier loom will become the main production machine of woven fabric.

    Model
    808-ULTRAFAST
    Max Speed
    800rpm
    Main Motor
    5.5-7.5KW
    Loom Width
    190, 220,230,250,280,300,340,380
    Weft Battening
    Matched cam which in tank wall
    Color Selecting
    8 electronic color selecting
    Shedding Device
    Electronic dobby 16-20 shafts, or electronic jacquard
    Let off
    Electronic Let off, warp beam ∅800mm or ∅1000mm
    Take up
    Electronic Take up, weft density range in 1-150 picks/cm, cloth roll diameter 600mm or cloth roll out of machine 1200mm
    Lubrication
    Spray lubrication, Oil bath lubrication, Manual oil pump lubrication, Oil gas lubrication, four method exist together

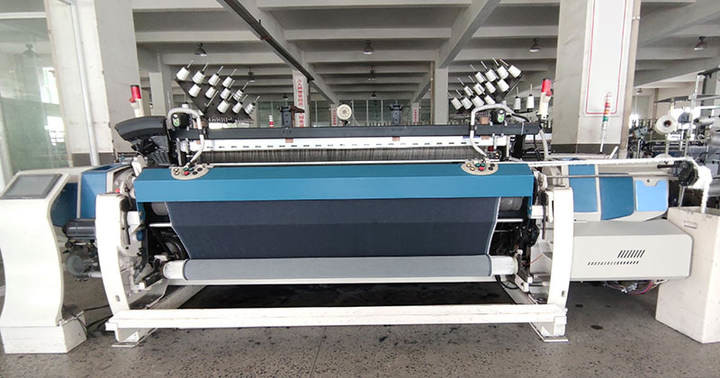

    Products Picture


    Shuttleless 800rpm Flexible Rapier Weaving Loom 360cm Reed WidthShuttleless 800rpm Flexible Rapier Weaving Loom 360cm Reed WidthShuttleless 800rpm Flexible Rapier Weaving Loom 360cm Reed Width


    Application Range


    PRODUCT CONFIGURATION

    Production Process

    Advantages

    1.Super speed
    Solid body material structure, intermedliate conjugate CAM weft battening design, steel guide rall, super motor make the maximum speed of the machine up to 800rpm, stable speed of 550-650rpm. This model can run at full speed from the first weft flling, save time and increase efficiency.

    2.Intermediate conjugate CAM weft battening
    It enhances the rigidity of the weft battening mechanism, Increases the weft battening force, and the motion balance Is bene- ticlal to hnlgh-speed
    weaving.

    3.Automatic Controlling
    PLC contrlling system, auto-stop, auto-start, auto weft seeking, over compensation, weft compensation, auto fault recog-nition and etc.

    4.Automatic Weft Seeking
    The electromagnetic clutch automatic weft seeking and heald reversing.

    5.Four Lubrication Method Exist Together
    Spray lubrication, Oil bath Iubrication, Manual oil pump Iubrication, Oil gas lubrication.


    Our service

    • Provide technical design and solutions;
    • Design and manufacture non-standard equipment;
    • Carry out professional technical training and guidance according to the contract;
    • Spare parts are available at any time;
    • Remote technical consultation and service;
    • Provide other special technical services according to customer requirements.

    Parts of customers

    Our exhibition



    PRODUCTION WORKSHOP

    FAQ


    Are you a factory or trading company ?
    yes ,we are trading company and we also have own factory
    Where is your main market ?
    12years ,our main markets are in Asia ,Europe ,North America
    Can I get free samples from your factory ?
    Yes ,of couse ,we are honored to offer your samples under $10.however ,freight you pay
    If products have some quality problem ,how would you deal with?
    We will responsible for all the quality problem if this had happed .
    Where is your factory located?How can I visit there ?
    Our factory is located in Gaoli Auto Expo City ,Huishan Area ,Wuxi ,China ,You can fiy to Shang hai airport .
    What is the delivery time of your products ?
    Qualitys is pridrity ,we always attch great inportance to quality controlling from the very beginning to the very end .Our
    factory has gained ISO991 certification
