    600rpm Automatic Inspection Low Power Consumption Loom Rapier

    Ask Lasest Price
    Brand Name : GOODFORE
    Model Number : ERL-600
    Certification : ISO
    Price : USD1500~USD10000/set
    Payment Terms : T/T, Western Union, L/C, , D/A
    Supply Ability : 200/set per month
    Delivery Time : 5-15 working days
    • Product Details
    • Company Profile

    600rpm Automatic Inspection Low Power Consumption Loom Rapier

    Automatic Inspection Function High Speed Low Power Consumption Loom Rapier

    Quick Details
    Applicable Industries:
    Garment Shops, Manufacturing Plant, Other
    Showroom Location:
    Egypt, Canada, United Kingdom, United States, Italy, France, Germany, Indonesia, Pakistan, Mexico, Russia
    Video outgoing-inspection:
    Provided
    Machinery Test Report:
    Provided
    Marketing Type:
    Ordinary Product
    Warranty of core components:
    1 Year
    Core Components:
    PLC, Engine, Motor
    Condition:
    New
    Type:
    Rapier Loom
    Application:
    textile industry
    Production Capacity:
    100%
    Place of Origin:
    Jiangsu , China
    Brand Name:
    GOODFORE
    Dimension(L*W*H):
    AS TO REAL CONDITION
    Weight:
    650 KG
    Power:
    2.7KW-3.7KW
    Warranty:
    1 Year
    Key Selling Points:
    Easy to Operate
    Reed width:
    150,170,190,210,230,280,300cm
    Working width:
    Reed width-(0-50cm)
    Weft color:
    2 color at will
    Start by:
    Super motor
    Motor capacity:
    2.7KW, 3.0KW, 3.7KW
    Pump:
    Plunger pump
    Nozzle:
    Annular nozzle manostat(ceramics jet needle
    After Warranty Service:
    Video technical support, Online support, Spare parts, Field maintenance and repair service
    Local Service Location:
    Canada, Turkey, United Kingdom, United States, France, Germany, Viet Nam, Peru, Saudi Arabia, Pakistan, India, Mexico, Australia
    After-sales Service Provided:
    Free spare parts, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
    Certification:
    CE
    Model
    GF-ERL-600
    Max Speed
    350-600rpm
    Main Motor
    5.5-7.5KW
    Loom Width
    150, 190, 230(220),250,280,320,340,360
    Weft Battening
    Matched cam which in tank wall
    Color Selecting
    8 electronic color selecting
    Shedding Device
    Electronic dobby 16-20 shafts, or electronic jacquard
    Let off
    Electronic Let off, warp beam ∅800mm or ∅1000mm
    Take up
    Electronic Take up, weft density range in 1-150 picks/cm, cloth roll diameter 600mm or cloth roll out of machine 1200mm
    Lubrication
    Spray lubrication, Oil bath lubrication, Manual oil pump lubrication, Oil gas lubrication, four method exist together

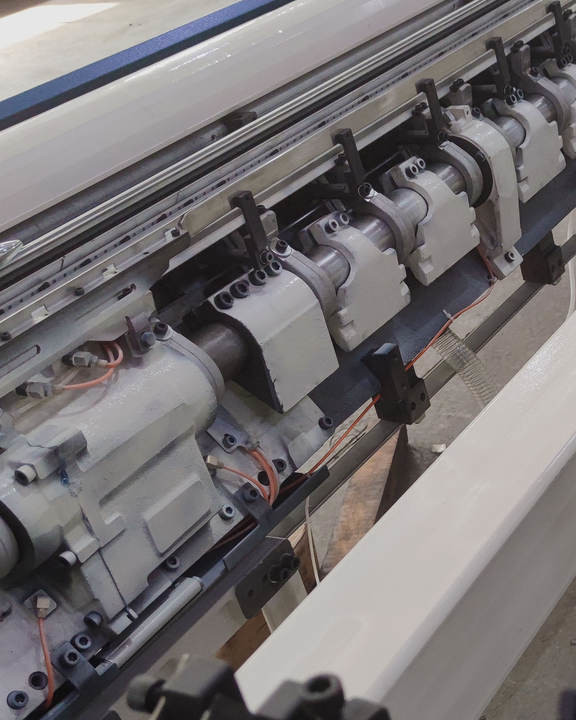

    Products Picture


    600rpm Automatic Inspection Low Power Consumption Loom Rapier600rpm Automatic Inspection Low Power Consumption Loom Rapier


    Application Range


    PRODUCT CONFIGURATION

    Production Process

    Advantages

    1.Super speed
    Solid body material structure, intermedliate conjugate CAM weft battening design, steel guide rall, super motor make the maximum speed of the machine up to 800rpm, stable speed of 550-650rpm. This model can run at full speed from the first weft flling, save time and increase efficiency.

    2.Intermediate conjugate CAM weft battening
    It enhances the rigidity of the weft battening mechanism, Increases the weft battening force, and the motion balance Is bene- ticlal to hnlgh-speed
    weaving.

    3.Automatic Controlling
    PLC contrlling system, auto-stop, auto-start, auto weft seeking, over compensation, weft compensation, auto fault recog-nition and etc.

    4.Automatic Weft Seeking
    The electromagnetic clutch automatic weft seeking and heald reversing.

    5.Four Lubrication Method Exist Together
    Spray lubrication, Oil bath Iubrication, Manual oil pump Iubrication, Oil gas lubrication.


    Our service

    • Provide technical design and solutions;
    • Design and manufacture non-standard equipment;
    • Carry out professional technical training and guidance according to the contract;
    • Spare parts are available at any time;
    • Remote technical consultation and service;
    • Provide other special technical services according to customer requirements.

    Parts of customers

    Our exhibition



    PRODUCTION WORKSHOP

    FAQ


    Are you a factory or trading company ?
    yes ,we are trading company and we also have own factory
    Where is your main market ?
    12years ,our main markets are in Asia ,Europe ,North America
    Can I get free samples from your factory ?
    Yes ,of couse ,we are honored to offer your samples under $10.however ,freight you pay
    If products have some quality problem ,how would you deal with?
    We will responsible for all the quality problem if this had happed .
    Where is your factory located?How can I visit there ?
    Our factory is located in Gaoli Auto Expo City ,Huishan Area ,Wuxi ,China ,You can fiy to Shang hai airport .
    What is the delivery time of your products ?
    Qualitys is pridrity ,we always attch great inportance to quality controlling from the very beginning to the very end .Our
    factory has gained ISO991 certification
