    Hot Sale High Speed 150cm Weed Width Rapier Weaving Loom 1080m/Min

    Ask Lasest Price
    Brand Name : GOODFORE
    Model Number : 910
    Certification : ISO
    Price : USD1500~USD4000/set
    Payment Terms : T/T, Western Union, L/C, , D/A
    Supply Ability : 200/set per month
    Delivery Time : 5-15 working days
    • Product Details
    • Company Profile

    Hot Sale High Speed 150cm Weed Width Rapier Weaving Loom 1080m/Min

    Rapier Loom QJH910 High-Speed Rapier Loom China Rapier Loom


    Parameter:
    1---Main drive: High force start motor,brake machine to effectively reduce the stop mark.5.5KW(<280cm) / 7.5KW(≧280cm)
    2--weft insertion: By Space 4 Linkrod structure, drive rapier wheel reciprocating motion by sector gear.Insert weft at left,handover in mid, superior weft-holding mode to ensure a smooth weft handover.Single guidehook,GAMMA Gripper,GAMMA tape
    3--Beating up: Conjugate cam beating up,Separate slay,Strengthen the rigidity of beating up and increase the beating up force. Moving balance is better for high-speed weaving.
    4--Shedding: GT408 Electronic Dobby,with 20 pcs heald frame at most
    5--Let off:Servo Electronic Let off,1.2KW(<280cm) / 1.5KW(≧280cm)
    6--take up:Servo Electronic take up,density-change weaving.1.2KW(<280cm) / 1.5KW(≧280cm)
    7--pick finding:Auto pick finding system: when weft broken, the power switch to the slow motor,which drive the motion of takeup, LENO, color selection and Shedding, with the let-off device, to achieve a slow pick-finding function.Slow pick finding motion to effectively eliminate the stop mark, avoiding accidental mechanical damage.
    8--color selecting:Stepper motor control rotary high speed electronic weft selector,4-16 colors(standard 6 colors)
    9--control system:Adopting 32 bit microcomputer control. Loom auto stop when weft breakage ,warp breakgae, empty weft,multi weft and positioning stop. Automatically detect and display error. Group control management, remote control, on-line diagnosis.
    10--Lubricating & Cooling:Closed forced circulation lubrication system,ensure the machine normal temperature rise.
    11--
    Dia.of warp beam:ф800 & ф1000 Dia.of cloth rolling:Innerф600,Outerф1200
    12--Suitable weaving range:Cotton,Linen,wool,polyester,Blending
    13--staple fiber: 5tex~1000tex;
    14--filament: 10D~3300D;
    Reed width150cm,190cm,210cm,220cm,230cm,250cm,280cm ,300cm,320cm,340cm,360cm
    SpeedDesign Top speed:550RPM Optimal Speed: 400-450RPM
    weft density1~200 pick/cm
    weft Insertion rateMax. 1080m/min
    Cotton3S~80S

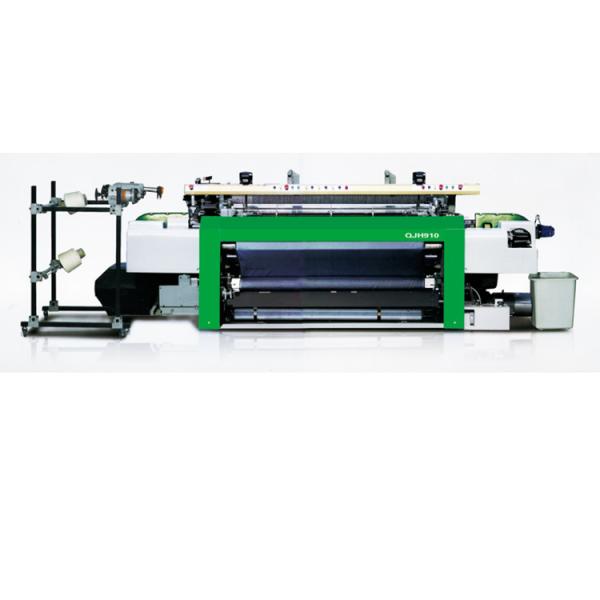

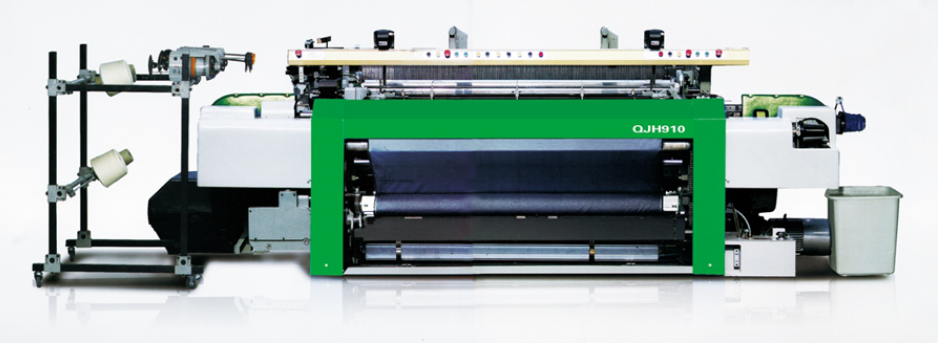

    products picture


    Hot Sale High Speed 150cm Weed Width Rapier Weaving Loom 1080m/MinHot Sale High Speed 150cm Weed Width Rapier Weaving Loom 1080m/Min


    Product details



    Advantages

    1.High-speed, Outstanding Quality of Fabrics, high- Eficiency.
    2.Low power consumption, less maintenance, less spare parts needed.
    3.Low power consumption, less maintenance, less spare parts needed.
    4.Easy operation and convenience, change fabrics easily, extensive use.


    Our service

    • Provide technical design and solutions;
    • Design and manufacture non-standard equipment;
    • Carry out professional technical training and guidance according to the contract;
    • Spare parts are available at any time;
    • Remote technical consultation and service;
    • Provide other special technical services according to customer requirements.

    Our History


    Goodmore tex Machinery Co., Ltd. was established in 2000. Its main products are jacquard machine, trademark machine and carpet machine parts.
    In 2005, goodmore tex Machinery Co., Ltd. began to export to foreign countries, and our products entered the EU market.
    In 2008, goodmore tex Machinery Co., Ltd. began to be a supplier of some small textile mills in China.
    In 2009, goodmore tex Machinery Co., Ltd. began to cooperate with some famous foreign textile mills. We provide some textile machinery and spare parts.
    In 2010, we expanded the plant.
    In 2012, goodmore tex Machinery Co., Ltd. passed the ISO quality system certification.
    In 2014, the factory moved to Gaoli Auto Expo City, Huishan District, Wuxi City. In addition, we added some textile spare parts and officially began mass production.

    ni nijiushi huyfsgg fanren nijiushijd

    hai zenm wan shid ba nijiushi hahh xinnian kuaile happy new year

    Our exhibition


    Certifications

    FAQ

    1.Q:Are you a factory or trading company?

    A:Yes,we are trading company and we also have own factory.

    2.Q:Where is your factory located? How can I visit there?

    A:Our factory is located in Gaoli Auto Expo City,Huishan Area, Wuxi, Jiangsu, China,You can fly to Shang hai airport.

    3.Q:Where is your main market?

    A:In recent years,our main markets are in Asia, Europe ,Noth America.

    4.Q:What is the delivery time of your products?

    Usually, the delivery time is 5 working days depending on your purchasing quantity.

    5.Q:Can I get free samples from your factory?

    A:Yes,of course,we are honored to offer your samples under $10 .however, freight you pay.

    6.Q:How does your factory do regarding quality control?

    A:Quality is priority.we always attch great inpotance to quality controlling from the very beginning to the very end. Our factory has gained IS09001

    certification.

    7.Q:If products have some quality problem, how would you deal with?

    A:We will responsible for all the quality problem if this had happened.
