    Steel Plastic Automatic Shuttles Rapier Jacquard Machine For Pigment Laminating

    Ask Lasest Price
    Brand Name : GOODFORE
    Model Number : E-Glass,C-Glass
    Certification : ISO
    Price : USD1500~USD10000/set
    Payment Terms : T/T, Western Union, L/C, , D/A
    Supply Ability : 200/set per month
    Delivery Time : 5-15 working days
    • Product Details
    • Company Profile

    Steel Plastic Automatic Shuttles Rapier Jacquard Machine For Pigment Laminating

    Automatic Shuttles Rapier Loom With Price Made In China

    1. function of fiberglass machine
    a.Apply to the glitter pigment laminating of leather, fabric, fiberglass gridding cloth lamination.
    b.It have the function of simulataneous spread glitter pigment, flavor powder, drying, winding.
    c.Apply to shoe material, bags and suitcases.
    2. could make product specification of the fiberglass machine :
    The specification of products by fiberglass mesh making machine produce :
    the fiberglass mesh making machine could produce following size of mesh:
    a. 16x16 mesh, 15x14 mesh, 12x12 mesh, 10x10 mesh, 9x9 mesh, 8x8 mesh, 6x6 mesh, 5x5 mesh, 5x4 mesh, 4x4 mesh, 3x3 mesh, 2.5x2.5 mesh, 1x1 mesh and so on
    b. Weight per sq.meter: 40g to 800g
    c. Each roll length: 10m,20m,30m,50m to 300m
    d. Width: 1m to 2.2m 61cm 71cm 80cm 100cm 110cm 122cm 142cm 152cm 162cm 183cm
    e. Color: White (standard) blue, green, orange, yellow,black, gray, off-white etc.
    f. We can produce many specifications and use different packaging according to customers’ requests.
    3. fiberglass machine feature :
    Fiberglass mesh making machine,the main raw material is high quality fiberglass wire, it adopts the
    coated technicians of PVC resin single wire, then through the weaving, shaped-deciding, examine.
    4. fiberglass machine advantage :
    It is our most competitive product. It is a kind of big sized rapier loom. The fabric and yarn can be weaved as follows:
    Yarn:weaving various natrual fibers, as cotton, hair, silk, numb, various artificial and synthetic fiber, yarn count from Nm2 to Td15.
    Fabric: weaving all kinds of fabric in range of 20 g-800 g/m^2 applying to various kind fabrics such as drap de berry, spining wool fabrics, flax, jute, color-weave, denim, real silk and cotton weaving chemical fiber and industrial cloth.
    5. the auxiliary equipment of the fiberglass machine : glue machine and warping machine
    Fiberglass mesh making machine auxiliary : glue machine
    Main features:
    Glue coating and drying machine is newly developed comprehensive design to reduce the operational workers, power and installation area.
    With dual glue applicators and dual logo printers
    Fiber glass mesh send to the drying tower after glue application for impregnation and drying, drying tower made of steel square beam covered with steel sheet , with heat insulation pad, and heating element (main sources of heat) temperature being controlled by thermostat relay and temperature controller.
    Advantage: Most energy saving, high production, lower operational cost and easy operation machine
    We are professional manufacture of the fiberglass mesh making machine ,being in this field for over 10 years.

    The width2300mm
    rotate speed

    110-170R.P.M


    The power

    1.5kw( 8grade)720 R.P.M


    Outsize4850x1827x2120mm
    day output

    800-1400m2/piece


    electricity control

    control box


    the total machine weight1900kg

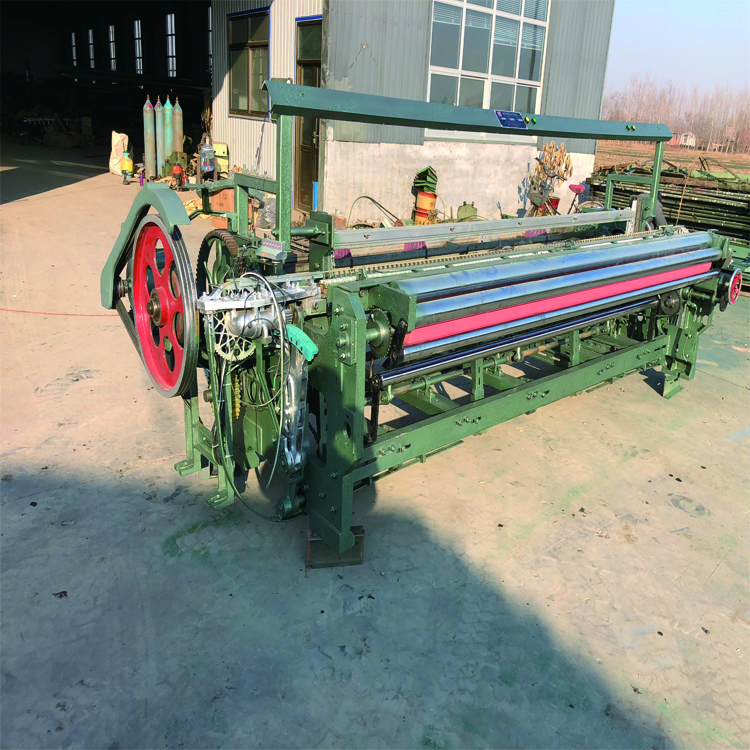

    Products Picture

    Steel Plastic Automatic Shuttles Rapier Jacquard Machine For Pigment Laminating



    Application Range


    PRODUCT CONFIGURATION

    Production Process

    Advantages

    1.Super speed
    Solid body material structure, intermedliate conjugate CAM weft battening design, steel guide rall, super motor make the maximum speed of the machine up to 800rpm, stable speed of 550-650rpm. This model can run at full speed from the first weft flling, save time and increase efficiency.

    2.Intermediate conjugate CAM weft battening
    It enhances the rigidity of the weft battening mechanism, Increases the weft battening force, and the motion balance Is bene- ticlal to hnlgh-speed
    weaving.

    3.Automatic Controlling
    PLC contrlling system, auto-stop, auto-start, auto weft seeking, over compensation, weft compensation, auto fault recog-nition and etc.

    4.Automatic Weft Seeking
    The electromagnetic clutch automatic weft seeking and heald reversing.

    5.Four Lubrication Method Exist Together
    Spray lubrication, Oil bath Iubrication, Manual oil pump Iubrication, Oil gas lubrication.


    Our service

    • Provide technical design and solutions;
    • Design and manufacture non-standard equipment;
    • Carry out professional technical training and guidance according to the contract;
    • Spare parts are available at any time;
    • Remote technical consultation and service;
    • Provide other special technical services according to customer requirements.

    Parts of customers

    Our exhibition



    PRODUCTION WORKSHOP

    FAQ


    Are you a factory or trading company ?
    yes ,we are trading company and we also have own factory
    Where is your main market ?
    12years ,our main markets are in Asia ,Europe ,North America
    Can I get free samples from your factory ?
    Yes ,of couse ,we are honored to offer your samples under $10.however ,freight you pay
    If products have some quality problem ,how would you deal with?
    We will responsible for all the quality problem if this had happed .
    Where is your factory located?How can I visit there ?
    Our factory is located in Gaoli Auto Expo City ,Huishan Area ,Wuxi ,China ,You can fiy to Shang hai airport .
    What is the delivery time of your products ?
    Qualitys is pridrity ,we always attch great inportance to quality controlling from the very beginning to the very end .Our
    factory has gained ISO991 certification
