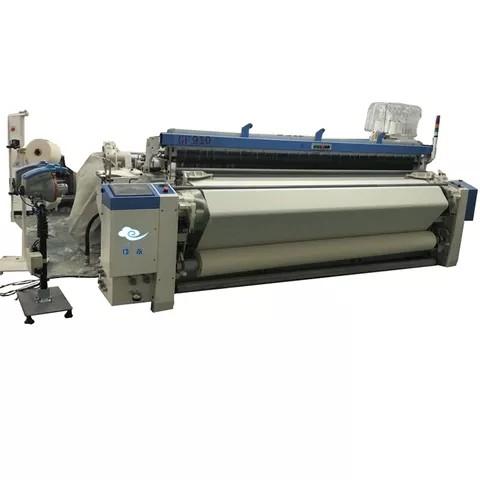

Cotton Fabric Air Jet Loom Weaving Textile Machine Steel Plastic

    Buy cheap Cotton Fabric Air Jet Loom Weaving Textile Machine Steel Plastic from wholesalers

    Buy cheap Cotton Fabric Air Jet Loom Weaving Textile Machine Steel Plastic from wholesalers
    • Buy cheap Cotton Fabric Air Jet Loom Weaving Textile Machine Steel Plastic from wholesalers
    • Buy cheap Cotton Fabric Air Jet Loom Weaving Textile Machine Steel Plastic from wholesalers
    • Buy cheap Cotton Fabric Air Jet Loom Weaving Textile Machine Steel Plastic from wholesalers
    • Buy cheap Cotton Fabric Air Jet Loom Weaving Textile Machine Steel Plastic from wholesalers
    • Buy cheap Cotton Fabric Air Jet Loom Weaving Textile Machine Steel Plastic from wholesalers

    Cotton Fabric Air Jet Loom Weaving Textile Machine Steel Plastic

    Ask Lasest Price
    Brand Name : GOODFORE
    Model Number : 190cm~360cm
    Certification : ISO
    Price : USD2000/SET-USD8000/SET
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 200/set per month
    Delivery Time : 1-3 working days
    • Product Details
    • Company Profile

    Cotton Fabric Air Jet Loom Weaving Textile Machine Steel Plastic

    Cotton Fabric Weaving machines Air Jet loom Textile Machine Air Jet Machine


    ◆high speed
    Now we't nsertion now frame stucure anc high speed CPU, ensure the rumang speed madimum 1200RPM.


    ◆Low energy consumption
    Now wet nsetion and main 10zzle enengy saving optimal des gn realize less air consumption.


    ◆Low vibration
    Using 3D design and computer analyss to optim iz0 the fiame structure includ ng the C/0sS rail c00 nections,
    and to rellize Lighlenng o9sign and opimum balance of ne beating motion. Tnese impiovemenls ensure
    Ower wioratinn witn high- speed operatinn


    ◆Flexibility and wide applicablity
    A full range of starnard equipment and a variety of options can weave fabriss tha: were prev ousy rmosty
    w0v00 oy rap cr looms. ineludng wdo home furmiohings faoric. stetn faoric, fabro of d feront yarn tyoes
    and counte, airbags. seers.ucker ard tanria with tuck-in selvages.


    ◆Easy operation &new Electronics
    Relatively lower mnachine, upper trmple are oobi gpou ior the aperatera 1ew interme-recy calor luncl un
    canel w th er hanced commur lcaton caplility and a rew, aster CPU.


    name
    Airjet Loom
    place of production
    made in china
    warranty
    one year
    quality
    high quality
    model
    weaving machines
    Reed space
    Nominal reed space: 190,210 230 250,280 340,360cm Effective reed space:0-60cm(190-250cm)Nominal reed space minus 0-
    60cm(190-250cm) 0-80cm (More than 280)Nominal reed space minus 0- 80cm (above 280cm)
    Yam range Spun
    Ne100-Ne5 Filament: 50D-900D
    Weft insertion
    2-Nozzle, 4-Nozzle 6- Nozzle for free choice
    Drive
    Direct control and positioning stop through electromagnetic brake Push-button bimanual operation and forward-reverse inching
    motion Ultra start motor 3.0KW (Cam shedding) 3.7KW(Dobby shedding) 6.5KW (Jacquard shedding)
    Weft insertion
    Main nozzle and sub- nozzle combined type Stretch nozzle Adopt profile reed Auiliary main nozzle
    Shedding
    Positive cam shedding: Heald frames max 8pcs Dobby shedding: heald frame max16pcs Jacquard shedding
    L _et-off
    Positive continuous let-off Single warp beam(below280cm) Twin-beam Positive easing, double back girder φ800 Flange φ800
    Take-up
    Electronic take-up Mechanical winding Pick density range: 25-205pcs/inch(mechanical take-up), 25-300pcs/inch (electronic take-up)
    Length counter display of weaving reports, with fixed-length stop function. Max Take-up dia .0600mm(cam,dobby.
    Reed Width
    190cm~360cm
    Power
    3.7KW

    Cotton Fabric Air Jet Loom Weaving Textile Machine Steel PlasticCotton Fabric Air Jet Loom Weaving Textile Machine Steel Plastic
