Quick Details

Applicable Industries: Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Construction works

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location: Turkey

Showroom Location: None

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Hot Product 2019

Warranty of core components: 1 Year

Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

Condition: New

Automatic Grade: Automatic

Place of Origin: Jiangsu, China

Voltage: 380V/50Hz

Power: 28kw

Dimension(L*W*H): 6800* 4080 *2850mm

Weight: 5400kg

Certification: ISO CE

Warranty: One Year

After-sales Service Provided: Free spare parts, Video technical support, Online support, Field inst

Feature:

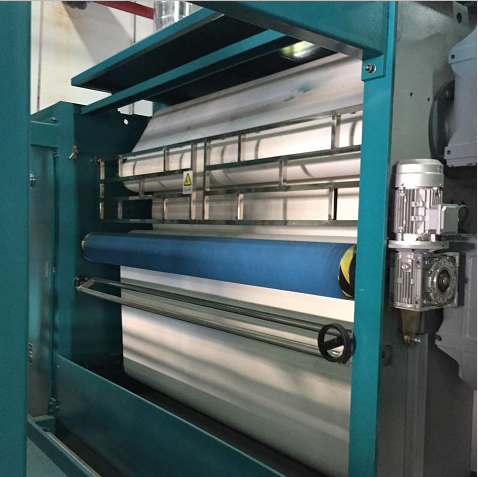

The entire process is continuous,full automatic, the fabric in the non-stop operation steamed done, so its efficiency is much higher than the traditional decatizer.

Advantage:

1. Using the most advanced touch screen and PLC control, the cloth feeding, tension, deviation, steam, steam exhausting amount, cloth and other actions are carried out automatically, greatly reduce the labor intensity of workers, improve product reproducibility.

2. After finishing the fabric quality, no end difference.

3. Working efficiency of 30 m / min.

4. After steaming, the fabric size is stable, the fabric surface quality and feel better.

5. The electric proportional valve is used to control the intake air, and the air cooling machine adopts frequency conversion control, which can conveniently adjust the steam and pumping intensity to ensure the fabric steaming.

6. The tension of the felt sleeve is controlled by two frequency inverters to ensure the tension is uniform and can be adjusted.

7. Seamless extra thick felt cover, to ensure that the felt sets can have a higher life expectancy.

8. Feeding device can be added at the end, which is more suitable for light type products

Technical Data:

1. Working width 1800mm~2300mm

2. Steam roller width 1900mm~2430mm

3. Steam roller Dia. 1200m

4. Fabric inlet speed 0~30m/min

5. Total capacity 45KW

6. steam pressure 4~6bar

7. steam consumption 60~70kg/h

8. air pressure 6bar

9. machine size L*W*H 5270* 4230 *2270mm

10. Weight: about 5500kg

Why Choose Us

1.Experienced and Professional scarf machinery manufacturer over 20 years
2. Strict quality control, professional service,honest communication and R&D team

3.Wide range scarf machinery, timely shipment. Drop shipping available
4. OEM available, A trial order or sample orders are accepted
5. 24 hours email reply pre and after sale service support.

After-sales Service

1.Provide training to operators for free.

2.Provide one year warranty for key components.

3.Lifetime paid maintenance.

Detailed reference contract.

Our company was founded in 2000 and located in Gaoli Auto Expo City, Huishan District, Wuxi City, Jiangsu Province. Over the years, we have been committed to the research and development of various looms and have achieved fruitful research results and experience in the field of high-end textile machinery. Our products cover all over the country and are exported to all over the world .

Our main products are as jacquard head, harness set, slitter systerm, warping & beaming machine, decatizing machine and etc. They are widely applied in rapier, jacquard, air-jet, projectile, water-jet, gripper machine and etc.

We also have refurbished machine for label looms、rapier looms、airjet looms,modification for electronic controller of all kinds jacquard machines and weaving looms,modification for PB board of PICANOL and weft weft feeder /accumulator.And some new Chinese rapier looms and airjet looms .

Our company adheres to the spirit of innovation and enterprising, dares to take responsibility, takes products as the characteristics as the purpose, takes innovation as the driving force, relies on science and technology, takes the market as the guidance, takes focus, kindness, pragmatism and innovation as the purpose, and takes integrity, professionalism, service and all-win as the core values, and strives to build a leading brand in the global textile machinery industry and help China's high-end manufacturing industry.

Advantages

1. Professional import jacquard machine, trademark machine and carpet machine parts supplier: Goodfore Tex Machinery Co., Ltd. has 6 series of products, a total of hundreds of varieties, our product technical performance has reached the industry-leading level, and won the trust of customers.

2. Professional manufacturing jacquard machine, trademark machine and carpet machine parts: we are a professional manufacturer of jacquard machine, trademark machine and carpet machine parts, and provide technical design and solutions.

3. Low cost: We have a professional team with technical knowledge and managerial experience. Our company has advanced equipments for manufacturing. By virtue of perfect managerial system and excellent quality , so we can always keep the price competitive and reasonable.

4. Richer Experience: We was founded in 2000. Up to now, Our products have been exported to more than 40 countries, such as Russia, Australia, USA, UK, Germany, Ukraine, Iran, Romania, Hungary, Mexico, Brazil, Chile, Canada, Spain, Colombia， etc. we can provide high service to our clients.

5. Higher Quality: We have a professional team with technical knowledge and managerial experience. Our company has been through professional quality system certification. So that we can guarantee the best quality of our products.

6. Has a long history: Our company was founded in 2000, is the first large jacquard machine, trademark machine and carpet machine parts of textile machinery company in Wuxi. We can provide you with intimate price.

Technology Advantages
1. We are a textile machinery company. We have one patent and are expected to obtain three more patents in just a few months.
2. We are willing to develop all new materials only when required by the application.
3. Advantageous technologies in composition control, especially the manufacturing of various accessories.
4. We have cast very good surfaces of various textile machinery, which is usually not easy to control for textile machinery, but we have adopted appropriate technology and can ensure a smooth and defect free surface.
5. Mismatch is a fatal defect in import and export trade. We can ensure accurate confirmation with you before shipment.
6. All our technological innovation is for one goal - the best quality, even if it means higher cost and lower productivity.
